Beskrivelse

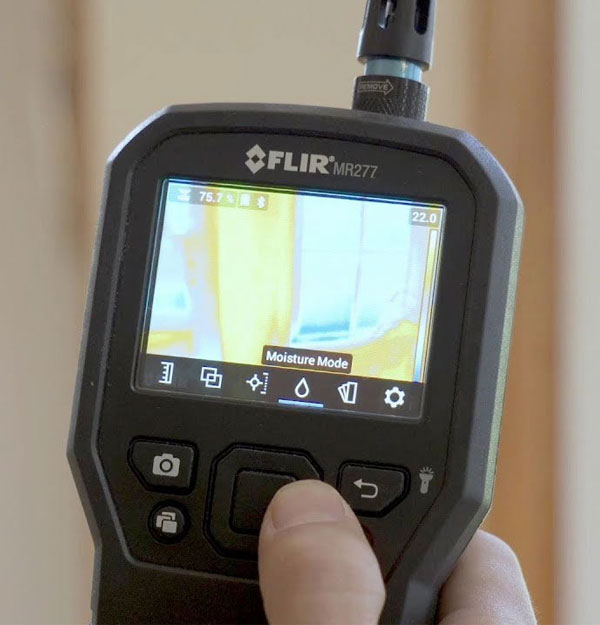

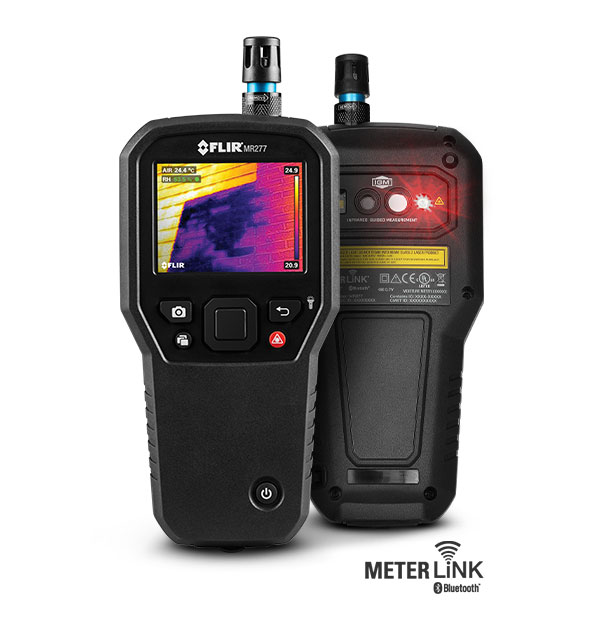

Bygningsinspektionsinstrument med fugtmåling og MSX® IR KAMERA
MR277 er det første FLIR bygningskontrolsystem, der kombinerer fordelene ved Infrarød Guidet Måling (IGM) og vores patenterede Multi-Spectral Dynamic Imaging (MSX) med avancerede miljøsensorer, der hjælper dig med hurtigt at finde, tydeligt identificere og nemt dokumentere problemer. IGM-teknologi og en laserpointer isolerer området, hvor du kan bruge den integrerede pinless fugtføler til ikke-invasiv aflæsning eller ekstern pin-sonde til invasive målinger. Med automatisk beregnet miljøaflæsning og en feltudskiftelig fugtigheds-/temperatursensor giver MR277 dig mulighed for at afslutte jobbet og minimere nedetid. Tilslut til eksterne enheder med METERLiNK® og brug FLIR Tools® til at forbedre fejlfinding og rapporter.
Tekniske Data:
Internal Memory 8 GB
Laser Orientation Single laser pointer to center of thermal image
Packaging Size 55 × 31 × 32 (21.6 × 12.3 × 12.4 in)
Sensitivity <70 mK
Typical Usage 4 work weeks
Warranty 10 year
COMPLIANCE & CERTIFICATIONS
Agency Approvals CE, FCC Class B, RCM

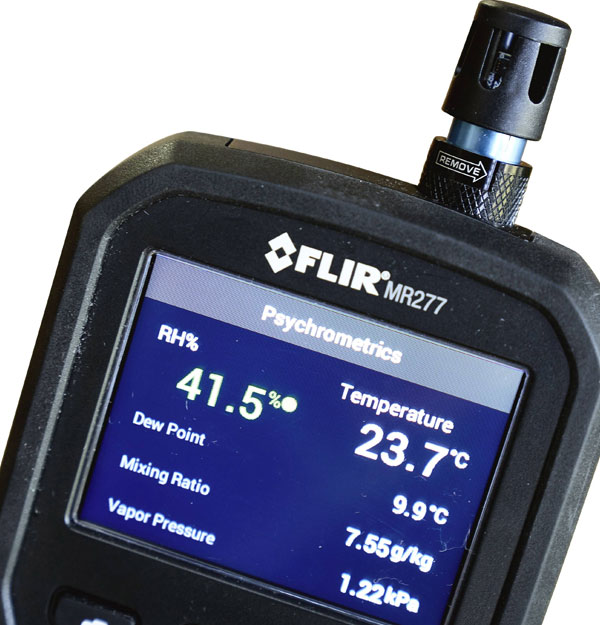

ENVIRONMENTAL
Drop test 3 m (9.8 ft)
Mixing Ratio Range 0 to 560 GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2 GPP (0.25 g/kg)
Relative Humidity Range 0 to 100% / Basic Accuracy 2.5% RH
Vapor Pressure Range 0.0 to 12.0 kPa / Basic Accuracy ±0.05 kPa
IMAGING & OPTICAL
Continuous Run Time 16 hours max
Digital Camera 2 MP, 70.5° × 56° FOV
Display Type QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display
Image Modes Thermal, Visual, MSX®
Image Update Speed Frequency 9 Hz
Imaging Detector FLIR Lepton microbolometer
Spectral Response 8 to 14µm
Thermal image minimum focus distance 10 cm
Thermal image palettes Iron, Rainbow, Arctic, White-Hot, Black-Hot
Field of View [W x H] 55° × 43°
MSX Embosses visual details on full resolution thermal image
Thermal Image Resolution [W x H] 19200 pixels (160 × 120)
MEASUREMENT & ANALYSIS
Air Temperature Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Dew Point Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)
Image Calibration Automatic with manual lock scale option
Measurement Resolution 0.1
Pin Moisture Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups 11 Material Groups
Pinless Measurement Depth 19 mm (0.75 in) max
Pinless Moisture Range 0 to 100
Response Time Pin Mode 750 ms
Response Time Pinless 100 ms
METER DATA
Auto Power Off Programmable: Off, 1, 5, or 20 minutes
OTHER
Certification Standards EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
POWER
Battery Rechargeable 4.2 V, 5400 mAh LiPo
SHIPPING INFORMATION
Includes FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard
STORAGE MEDIA
Saved Image File format Radiometric JPEG
Stored Image Capacity 15000 images
